Pressure gauge calibration traceability is the documented link between a field gauge reading and a recognized pressure standard.
What pressure gauge calibration traceability means

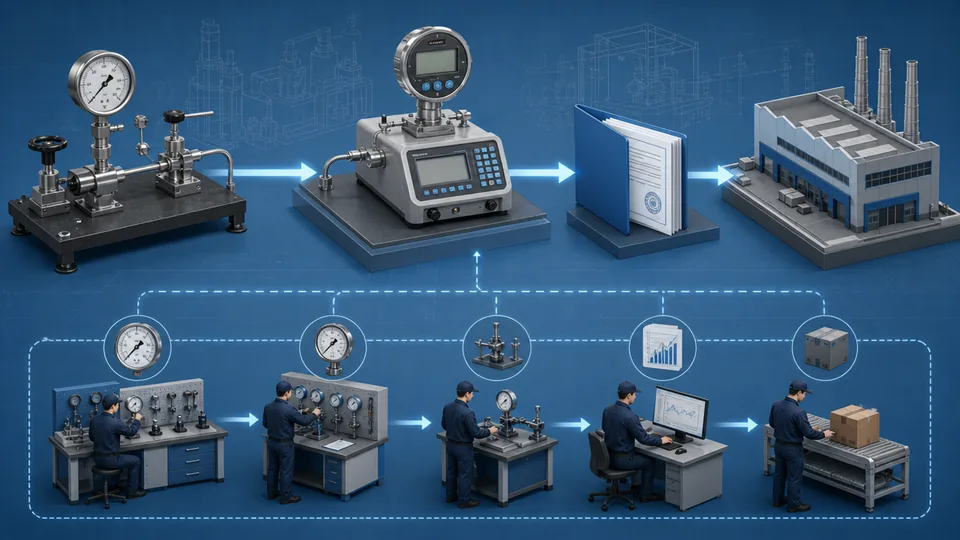

Pressure gauge calibration traceability means more than a sticker on the window. It is an unbroken, documented chain of comparisons from the working pressure gauge to a reference standard, and from that reference standard to a national or internationally recognized measurement system. The useful output is not only a pass or fail mark; it is evidence showing the gauge identification, calibration method, applied pressure points, as-found and as-left results, measurement uncertainty, date, environmental conditions and the laboratory or technician responsible.
The main keyword for this article is pressure gauge calibration traceability. Related terms include pressure gauge calibration certificate, ISO 17025 calibration, pressure gauge accuracy verification and NIST traceable pressure calibration. NIST describes pressure and vacuum calibration services for submitted pressure calibration items from 10 kPa to 280 MPa, while ILAC P10 explains policy expectations for metrological traceability. Useful external references are NIST pressure/vacuum calibrations and ILAC policy documents.
For gauge selection context before calibration is specified, compare this article with the Manogauge pressure gauge accuracy class selection guide and the industrial pressure gauge selection guide.
Review Pressure Gauge Accuracy Classes →→Why traceable calibration matters for purchasing, audits and maintenance
A pressure gauge may be mechanically sound yet still unsuitable for a controlled process if its last calibration is unknown. In hydraulic power units, compressor skids, steam utilities, fire protection checks, food and beverage CIP circuits, pharmaceutical utilities and test benches, a wrong pressure reading can lead to poor set-up decisions, missed filter fouling, overpressure risk or unnecessary replacement of equipment.
Traceable calibration gives buyers and maintenance teams a way to separate three questions. First, does the gauge type match the application? Second, is the stated accuracy class appropriate for the task? Third, does the individual instrument still perform within tolerance after shipment, storage and service exposure? These questions should not be merged. A catalog accuracy class, such as 1.6% full scale, describes the design class; a calibration result describes a particular instrument at particular test points on a particular date.
Traceability also protects communication between supplier and customer. A purchase order can state whether standard factory inspection is enough, whether a calibration certificate is required, and whether an accredited laboratory certificate is needed. This avoids arguing after delivery about words like certified, calibrated or traceable.
What a useful pressure gauge calibration certificate should contain
A calibration certificate should make the result auditable. It does not need decorative language, but it should contain enough information for a quality engineer to understand what was tested and how the decision was made.
| Certificate item | Why it matters | Buyer check |
|---|---|---|
| Gauge identification | Links the document to one physical gauge | Match model, serial number, range and connection |
| Calibration points | Shows where pressure was applied | Include rising and, when needed, falling pressure points |
| As-found data | Shows condition before adjustment | Required when maintenance decisions depend on drift history |
| As-left data | Shows condition after adjustment or confirmation | Compare against purchase tolerance |
| Reference standard | Shows the instrument used for comparison | Confirm standard ID and calibration validity |
| Measurement uncertainty | Shows doubt associated with the result | Check it is small enough for the acceptance rule |
| Accreditation or scope | Shows whether the service is covered | Verify the pressure range and method are inside the scope |
For a general-purpose utility gauge, a factory calibration record may be enough. For regulated production, acceptance testing, custody-related checks or customer audits, the buyer may need an ISO/IEC 17025 accredited certificate whose scope specifically covers the pressure range and method being used.
Prepare a Calibration Certificate RFQエンジニアが24時間以内に返答→Calibration interval, tolerance and uncertainty are separate decisions
A common mistake is to ask for annual calibration without first defining risk. Calibration interval should be based on service severity, historical drift, safety impact, audit requirement and how often the gauge is used for decisions. A clean air receiver gauge may have a longer interval than a gauge on a pulsating hydraulic press, even if both have the same dial size and range.
Tolerance is the maximum error the user will accept for the task. Measurement uncertainty is the evaluated doubt in the calibration process. They are related, but not the same. If the calibration uncertainty is large compared with the allowed tolerance, the pass or fail decision becomes weak. Quality systems often define a test uncertainty ratio or a guard band rule, but the correct rule depends on the user quality procedure.
Do not assume a more accurate gauge automatically solves the problem. Accuracy class, range, vibration exposure, temperature, readability, connection leakage, overpressure events and operator access all affect whether a pressure reading is useful in the field.
Acceptance checks before ordering calibrated pressure gauges
When ordering pressure gauges with calibration documents, write the requirement in engineering terms rather than marketing terms. State the pressure range, unit, accuracy class, calibration points, acceptance tolerance, certificate type, language if needed, and whether as-found data is required. If the gauge will be used in oxygen, hydrogen, steam, corrosive liquid, sanitary service or a hazardous area, calibration paperwork alone is not enough; material compatibility, cleaning, sealing, temperature rating and site approval still need separate confirmation.
Manogauge can support specification discussions for industrial pressure gauges, stainless steel pressure gauges, liquid-filled gauges, diaphragm seal assemblies and related pressure instruments, but no article can replace review of the actual process. Zhejiang manufacturing capability and ISO 9001 quality management are useful supplier signals; they do not by themselves prove that a specific gauge is acceptable for a regulated measurement point.
A practical RFQ should include the process medium, normal and maximum pressure, temperature, connection thread, dial size, wetted material, required certificate, destination market and any customer audit language. That is the shortest path to a pressure gauge calibration traceability package that matches the real use case.
Key takeaways
- Pressure gauge calibration traceability is documented evidence, not only a sticker or verbal claim.
- A certificate should include gauge ID, test points, as-found/as-left data, uncertainty and reference standard information.
- Calibration interval, tolerance and measurement uncertainty must be defined separately for the application risk.
- Calibration paperwork does not replace material, connection, temperature, safety or site-code review.
Related products
- General Pressure Gauge - Radial (ZX-08-R) — 0–40 MPa
- Stainless Steel Pressure Gauge - Radial (ZX-01-R) — 0–100 MPa
Часто задаваемые вопросы
What does pressure gauge calibration traceability mean?
It means the gauge result is connected through documented comparison steps to a recognized pressure standard, with records such as reference standard ID, uncertainty, date and calibration method.
Is a factory calibration certificate the same as ISO 17025 accreditation?
No. A factory certificate may be useful, but ISO/IEC 17025 accreditation requires a competent laboratory and a scope that covers the relevant pressure range and method.
How often should a pressure gauge be calibrated?
The interval depends on service severity, drift history, safety impact, audit requirements and how often the reading is used for decisions; annual calibration is common but not automatically correct.
What should I specify when ordering calibrated pressure gauges?
Specify range, unit, accuracy class, calibration points, acceptance tolerance, certificate type, as-found data requirement, process medium, connection and destination market.
Does calibration prove a gauge is safe for oxygen, hydrogen or corrosive media?
No. Calibration verifies measurement performance. Oxygen, hydrogen, corrosive, sanitary or hazardous-area service also requires material, cleaning, sealing, temperature and site approval review.
