Refrigerant Pressure Gauge Supplier

HVAC Refrigerant
Gauge Supplier

Refrigerant pressure gauges compatible with R410A, R22, R134a, R404A and more. Dual-scale dials (pressure + saturation temperature), SAE & NPT connections, OEM-ready for HVAC equipment builders.

Request a Quote → Browse Catalog
R410A / R22 / R134a / R404A compatible scales
Dual-scale dial: pressure + saturation temperature
SAE / NPT / 1/4" flare connections · MOQ 10 pcs
15+
Years Manufacturing
50+
Countries Exported
200+
SKUs in Catalog
10pcs
Minimum Order Qty
🏆

National High-Tech Enterprise

Certified · China Ministry of Science

❄️

Refrigerant-Compatible Materials

Bourdon tube & seals rated for refrigerant media

🌐

CE / RoHS Compliant

Available on applicable models

⚡

OEM Private Label

Custom dial & refrigerant scale printing

Product Features

Refrigerant Gauges Built for
HVAC & Refrigeration Professionals

❄️

Multi-Refrigerant Compatibility

Compatible with R410A, R22, R134a, R404A, R32, R507A and other common refrigerants. Specify the refrigerant type for correct scale printing.

📊

Dual-Scale Dials

Outer ring: pressure (MPa / bar / psi). Inner ring: saturation temperature for the specified refrigerant — instantly correlate system pressure with refrigerant state. No chart needed.

🔧

HVAC-Ready Connections

SAE 1/4" flare, NPT and BSP connections available. Compatible with standard HVAC manifold sets and service equipment used globally.

Product Range

Refrigerant Gauge SKUs

Refrigerant Pressure Gauge R410A
R410A · HIGH-SIDE

Refrigerant Gauge — R410A

High-side gauge for R410A systems. Dual-scale dial with pressure and saturation temperature. Red case standard.

0–5.5 MPa · Dual scale · SAE 1/4" flare
View Details →
Refrigerant Pressure Gauge R22
R22 · DUAL SCALE

Refrigerant Gauge — R22

Compatible with R22 / R407C systems. Dual-scale dial. Bottom or back entry. Blue or red case available.

0–3.5 MPa · Dual scale · SAE / NPT
View Details →
Refrigerant Pressure Gauge R134a
R134a · AUTO / HVAC

Refrigerant Gauge — R134a

Automotive and light commercial HVAC applications. R134a dual-scale. Compatible with standard manifold sets.

0–3.0 MPa · Dual scale · SAE / BSP
View Details →
Oil-Filled HVAC Gauge
OIL-FILLED · HVAC

Oil-Filled HVAC Gauge

Glycerin-filled refrigerant gauge for compressor discharge lines with high vibration. Extended service life.

Refrigerant-compatible fill · Vibration service
View Details →
Applications

Where Refrigerant Gauges Are Used

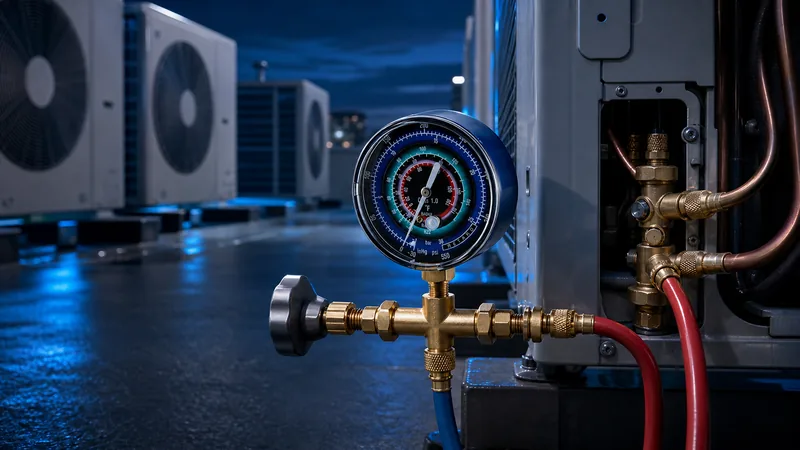

Air conditioning split system VRF application
01 · HVAC

Air Conditioning Systems

Split system, VRF/VRV and cassette AC suction and discharge pressure measurement during commissioning and service.

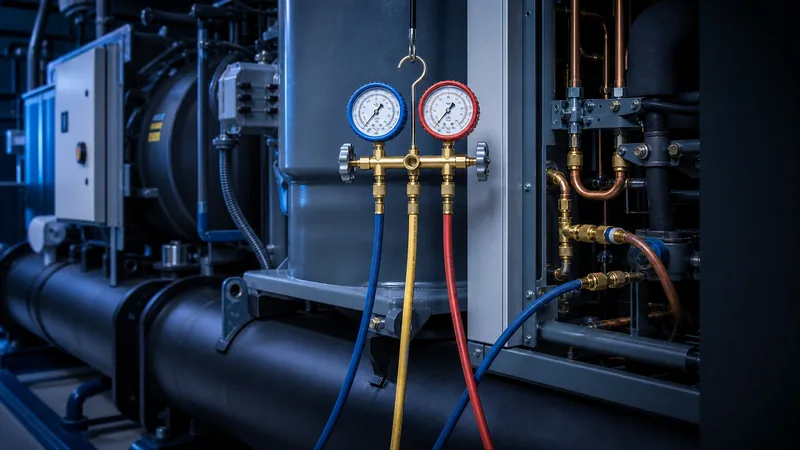

Chiller plant centrifugal screw chiller application
02 · HVAC

Chiller Plants

Centrifugal and screw chiller suction/discharge monitoring. Permanent gauge installation on refrigerant circuit service ports.

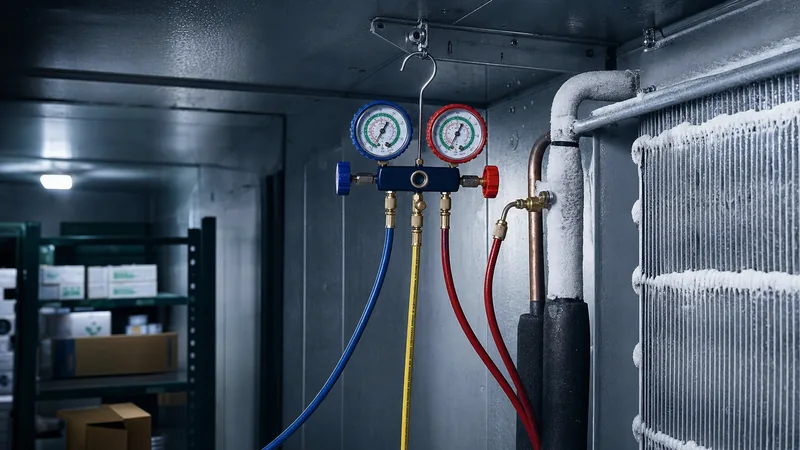

Cold room walk-in freezer refrigeration application
03 · COLD STORAGE

Cold Room & Walk-In Freezers

Refrigeration system commissioning and routine maintenance pressure checks on low-temperature cold storage applications.

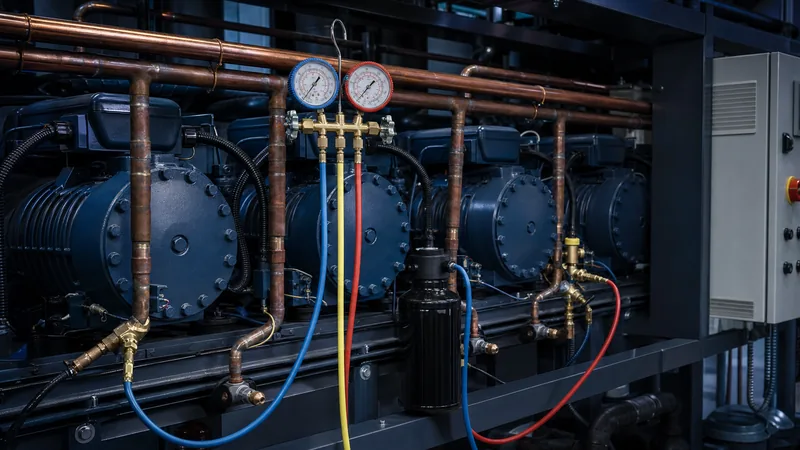

Commercial supermarket refrigeration application
04 · COMMERCIAL

Commercial Refrigeration

Supermarket display case circuits, remote condensing unit pressure monitoring and service manifold applications.

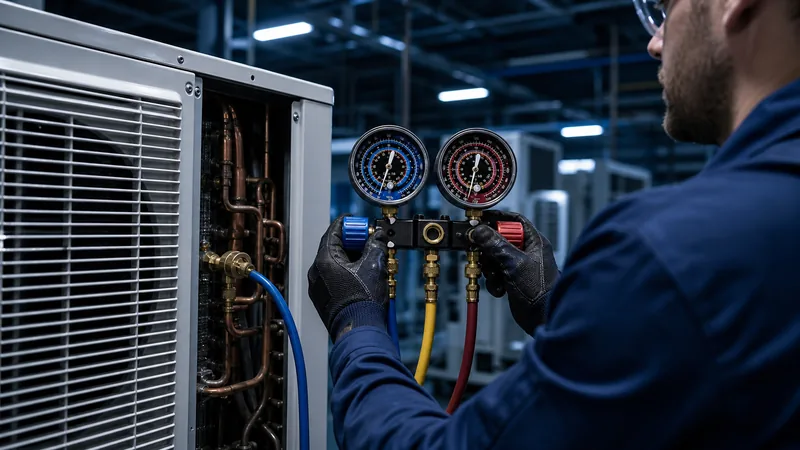

HVAC equipment OEM manufacturing application
05 · OEM

HVAC Equipment Manufacturers

OEM integration into air-cooled and water-cooled HVAC units. Custom scales and private-label dial printing available.

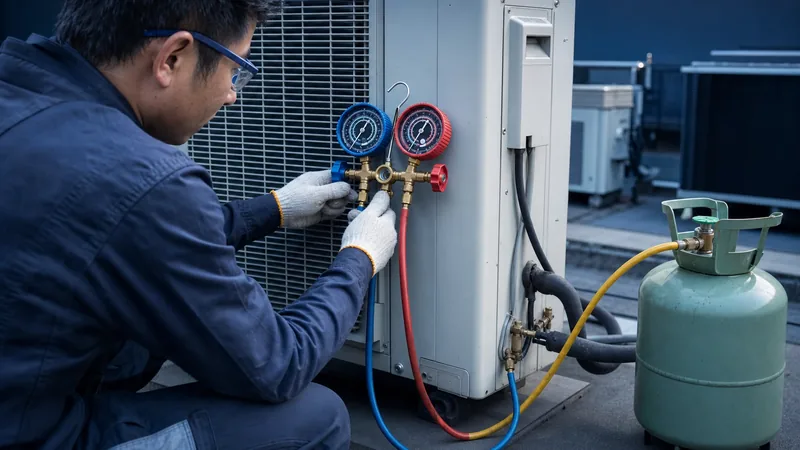

HVAC technician field service and maintenance
06 · SERVICE

AC Service & Maintenance

Field service manifold gauges for HVAC technicians. Available as individual gauges or matched low/high side pairs.

How It Works

Reading a Refrigerant Gauge

STEP 01 · CONNECT

Connect to Service Port

Attach to the suction (low side, blue) or discharge (high side, red) service port using a 1/4" SAE flare connector or specified fitting.

STEP 02 · PRESSURE

Read the Pressure Scale

The outer dial ring shows system pressure in MPa, bar or psi directly from the Bourdon tube pointer deflection.

STEP 03 · TEMPERATURE

Check Saturation Temperature

The inner colour ring shows the corresponding refrigerant saturation temperature — diagnose superheat and subcooling instantly.

Why Manogauge

HVAC Gauge Manufacturer
for Global Distributors

01

Custom Refrigerant Scales

Specify the refrigerant(s) and we print the correct saturation temperature inner scale. Multi-refrigerant dials also available.

02

OEM Dial & Brand Printing

Colour-coded dials (blue for low side, red for high side), custom logo and brand name for HVAC OEM and distributor private label.

03

Compatible Materials

Bourdon tubes, seals and wetted parts verified compatible with the specified refrigerant before shipping.

04

Low MOQ, Fast Lead Time

From 10 pcs per model for standard configurations. 2–4 week lead time. Samples available before bulk commitment.

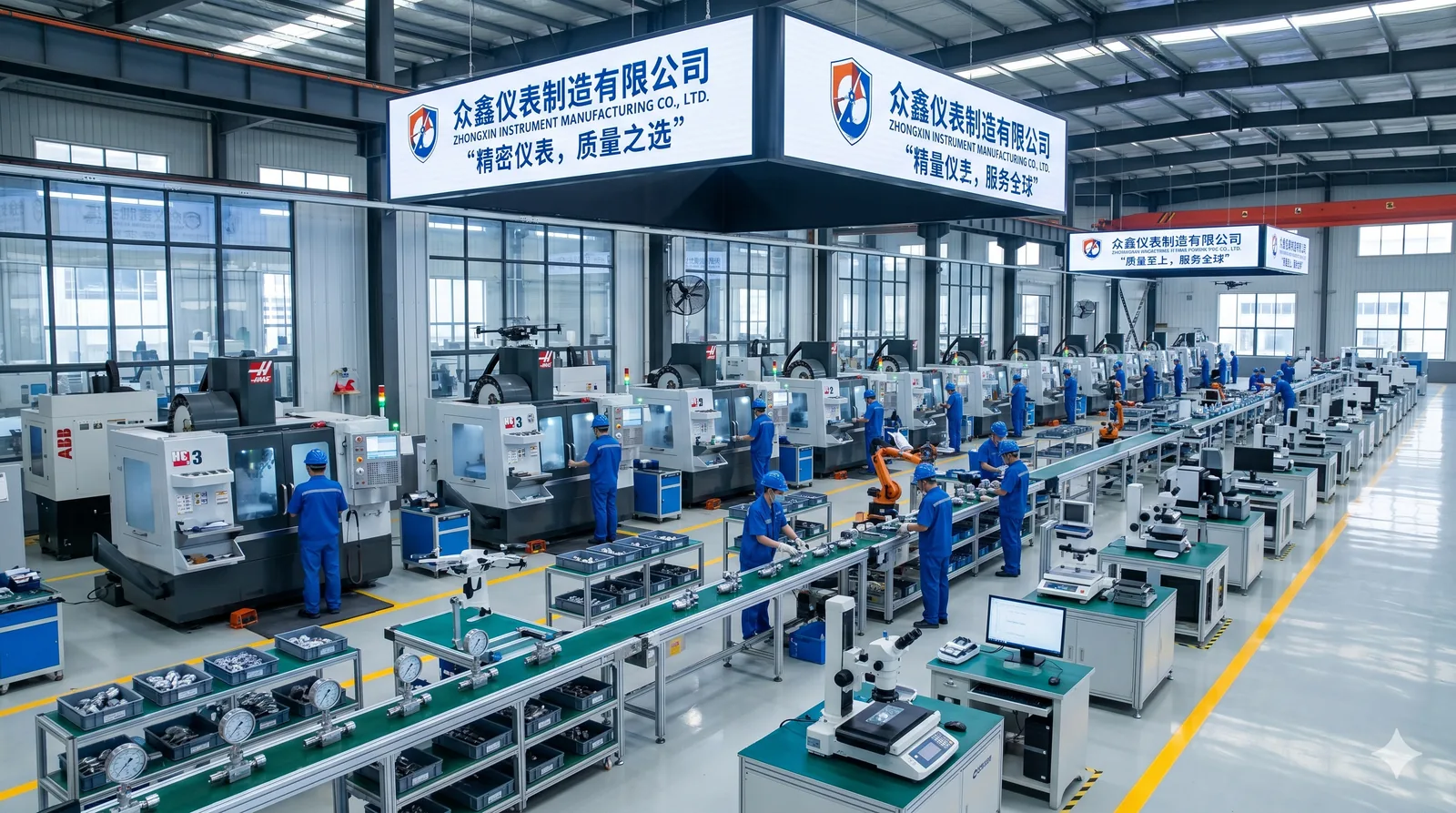

Manogauge refrigerant gauge factory
Send Your Spec

RFQ Checklist

Include these details for an accurate quote within 24 hours.

Submit RFQ Now →
Refrigerant type (R410A / R22 / R134a / other)
Pressure range (high side or low side)
Connection type (SAE flare / NPT / BSP)
Dial diameter (63 / 80 / 100 mm)
Pressure unit (MPa / bar / psi)
Mounting direction (bottom / back)
OEM logo / brand / custom scale needs
Order quantity and delivery requirements
Buyer FAQ

Frequently Asked Questions

What refrigerants are your gauges compatible with?

We supply gauges scaled for R410A, R22, R134a, R404A, R32, R507A and others. Specify the refrigerant at RFQ stage for correct scale and material selection.

What does the inner scale on the dial mean?

The inner colour ring shows the saturation temperature corresponding to the reading pressure for the specified refrigerant — no conversion chart needed during service.

Can I get matched high-side and low-side gauge pairs?

Yes. Matched low-side (blue) and high-side (red) pairs are available for manifold sets. Specify at RFQ stage and we'll match scales and cases.

What connection types are available?

SAE 1/4" flare, NPT and BSP. SAE flare is standard for HVAC service equipment. Confirm the thread standard used in your market when ordering.

Can you print our brand logo on the dial?

Yes. Custom dial printing with your logo, brand name, colour scheme and refrigerant scale is available. Minimum quantities apply — confirm via RFQ.

Are samples available before bulk order?

Yes. Evaluation samples can be arranged. Note your sample requirement when submitting the RFQ and we'll confirm availability and cost.
