A2L R-454B refrigerant pressure gauge selection has become a practical HVAC service subject as new heat pumps and air conditioners move toward lower-GWP refrigerants such as R-454B and R-32. A refrigerant pressure gauge does not decide the charge by itself. It gives technicians a live high-side and low-side pressure reference that is checked against the equipment label, manufacturer pressure-temperature chart, measured temperatures and the approved service procedure. For distributors and service teams buying Manogauge ZX-10 refrigerant gauges, the buying decision connects pressure range, 7/16 inch UNF connection, hose set, dial readability and the A2L service workflow instead of treating the gauge as a generic industrial instrument.
1. Why A2L and R-454B changed HVAC service checks
The A2L transition is now visible in HVAC service because equipment labels, refrigerant cylinders, recovery machines, leak detection practices and technician training are changing at the same time. Bosch describes the industry move toward lower-GWP refrigerants for residential heating and cooling equipment, and the EPA SNAP program lists acceptable substitutes and use conditions for residential and light commercial air conditioning and heat pumps. These changes create a real search need: service teams want to know how pressure checks fit into the new refrigerant workflow.

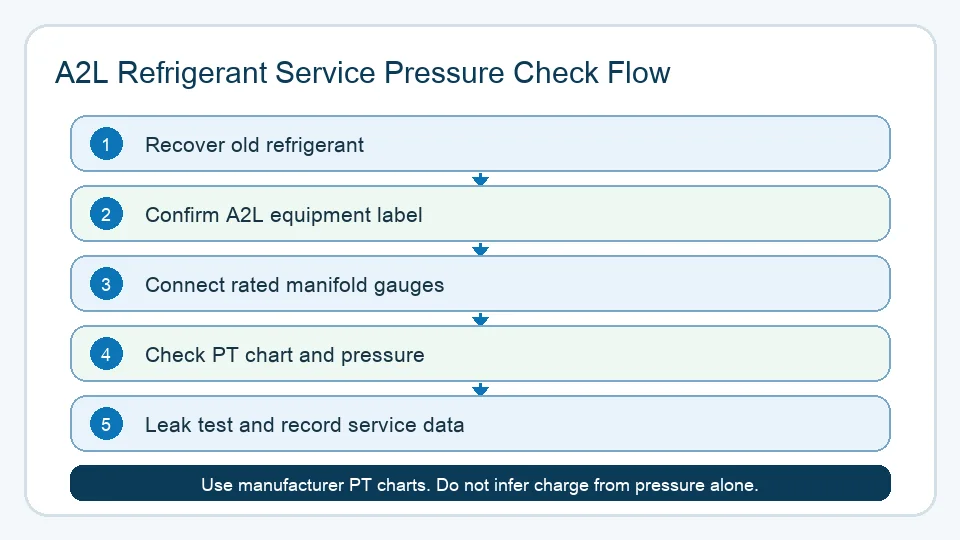

For Manogauge, the natural product connection is the refrigerant pressure gauge ZX-10-R used as part of a manifold set. On an A2L job, the gauge reading is one field signal, not a complete diagnosis. The technician still needs the equipment nameplate, refrigerant type, manufacturer pressure-temperature chart, measured line temperatures, leak-test result and local safety procedure. That distinction keeps A2L R-454B refrigerant pressure gauge selection accurate and useful for buyers.
Helpful background references include the Bosch A2L refrigerant change guide and the EPA SNAP page for residential and light commercial air conditioning substitutes.
View Refrigerant Pressure Gauges ->Explore 143+ industrial gauge models→2. What a refrigerant manifold gauge actually measures
A refrigerant manifold gauge set is normally used as a paired service tool. The blue gauge reads the low-pressure side, and the red gauge reads the high-pressure side. During commissioning, recovery, evacuation checks or troubleshooting, the technician connects rated hoses to the service ports of the outdoor unit or refrigeration circuit, then compares the pressure values with the refrigerant PT chart and temperature readings.
This use environment is different from a permanent process gauge on a pump, water-treatment skid or data-center coolant pipe. A refrigerant gauge is handled, connected, disconnected and stored as part of an HVAC service kit. In real field service, the red and blue manifold gauges are positioned at an outdoor HVAC unit with hoses, service valves and a recovery or service cylinder nearby.
The same mechanical principles still matter: vibration control, overpressure protection, dial readability, connection-thread protection and sealing. For general mounting guidance, see Manogauge’s pressure gauge installation best practices.
3. Gauge range, connection and readability for ZX-10 buyers
For the Manogauge ZX-10 refrigerant pressure gauge family, current product data lists a 0-800 psi pressure range, 50-80 mm dial sizes, steel case options, ±1.6 / 2.5% accuracy classes and a 7/16 inch UNF connection. These are useful starting points for distributors comparing replacement gauge heads, manifold gauge sets or OEM dial options. The final order is still matched to the exact refrigerant, hose set, service-port configuration and local requirement.
For R-454B or R-32 service, readability matters because the pressure value is compared with a specific PT chart. A clear psi/bar scale, correct connection and dial layout can reduce field confusion when technicians work across refrigerants. If the order involves multiple markets, check thread and connection terminology with the pressure gauge thread connection guide before confirming drawings or labels.
Relevant Manogauge options include the ZX-10-R radial refrigerant pressure gauge and the ZX-10-A axial refrigerant pressure gauge. Buyers can use the pressure gauge RFQ form to request drawings, dial artwork, sample details and configuration confirmation.
Request ZX-10 Refrigerant Gauge Quote ->Our engineers respond within 24 hours→4. Safety references and limits of the pressure reading
A2L refrigerants are commonly described as lower-flammability refrigerants. That classification does not remove the need for ventilation, leak control, trained service work, approved tools and the equipment maker’s service guide. AHRI’s Safe Refrigerant Transition resources and ASHRAE refrigeration standards are useful references for the broader safety context, while the equipment manufacturer remains the first source for service steps.
A reliable specification is based on exact service conditions rather than universal claims. The buyer verifies pressure range, scale units, hose compatibility, 7/16 inch UNF connection, leak-tightness, material compatibility, service temperature, packaging and documentation for the target refrigerant service. If a claim is not listed in Manogauge product data, Manogauge can review it before purchase.
For broader safety context, review AHRI Safe Refrigerant Transition and ASHRAE refrigeration standards resources.
5. Distributor and service-team buying checklist
A practical A2L refrigerant gauge order starts with service details. Which refrigerants will the team service: R-454B, R-32 or another approved refrigerant? Is the buyer ordering a complete manifold set, replacement gauge head or private-label dial? Does the technician need psi/bar dual scale, a 50 mm or 80 mm dial, radial or axial connection, and packaging for distributor resale?
For export and OEM buyers, Manogauge can review gauge range, connection, dial artwork and packaging requirements from Zhejiang, China manufacturing. Final approval is based on the buyer’s equipment, refrigerant supplier service guide and local service rules. RFQ information usually includes the target refrigerant, manifold model, hose connection, pressure scale, dial language and sample requirement.
A2L R-454B refrigerant pressure gauge selection connects low-GWP refrigerant adoption with real HVAC pressure readings, PT-chart interpretation, manifold gauge usability and documented procurement requirements.
Key takeaways
- A2L refrigerants such as R-454B and R-32 make pressure checks more dependent on equipment labels, PT charts, temperature readings and documented service procedures.
- Refrigerant manifold gauges are paired service tools: blue for low side and red for high side, connected temporarily to HVAC service ports.
- Pressure alone does not confirm charge; it is one field signal within recovery, evacuation, leak checking, temperature measurement and troubleshooting.
- ZX-10 refrigerant gauge orders include checks for 0-800 psi range, 7/16 inch UNF connection, hose compatibility, dial scale and OEM packaging requirements.
- A complete RFQ package normally includes the HVAC service condition, target refrigerant, manifold connection, pressure scale, dial language and sample requirements.
Frequently asked questions
What is an A2L R-454B refrigerant pressure gauge used for?
It is used in an HVAC manifold set to read high-side and low-side pressure during service, recovery, evacuation checks and troubleshooting. The reading is interpreted with the equipment label, manufacturer PT chart, measured temperatures and approved service procedure.
Can pressure alone confirm the correct R-454B charge?
No. Pressure alone is not a complete charging method. For A2L refrigerants such as R-454B or R-32, technicians follow the equipment manufacturer procedure and compare pressure with temperature and PT chart data.
Where does a refrigerant manifold gauge connect?
A paired refrigerant manifold gauge connects to rated HVAC or refrigeration service ports using compatible hoses and valves. It is a temporary service tool, different from a single permanent gauge for water or coolant pipes.
What ZX-10 specifications are checked before ordering?
The order review covers the 0-800 psi pressure range, dial size, scale units, 7/16 inch UNF connection, hose compatibility, refrigerant service target, readability, packaging and OEM dial requirements.
Does one gauge configuration fit every A2L refrigerant service?
Universal compatibility is not automatic. Buyers request confirmation for the exact gauge configuration and target refrigerant service. Manogauge can review range, connection, dial and OEM requirements before quotation.
